Heavy Duty Cast Iron Grommet Press Machine Hand Tool



Hand Press Grommet Eyelet Machine

Price: Quote as custom
  • Model
    6612-0006
Material: Cast Iron
Size: 8.5 x 19 x 39cm
Color: Green
MOQ:
  • MOQ: Custom quote — contact MH
  • MOA: 3000 dollars (no restriction on the types of products)
    Note for High Market Share Regions: West African: 5000 dollars

◆ Lead Time: 25-35 days

◆ Shipping: Sea freight, Railway freight

◆ Payment: T/T, L/C ...

About Ningbo MH


MH specializes in garment accessories and fabrics, offering high-quality solutions for the textile and home décor industries. With advanced automated warehousing, MH ensures efficient supply chain management and provides comprehensive after-sales support, exclusively serving businesses, not individuals.

1999
Since
871
Annual Sales
40
Branch Offices
600
Staffs

Product Details


Material: Cast Iron

Color: Green

Size: 8.5*19*39cm

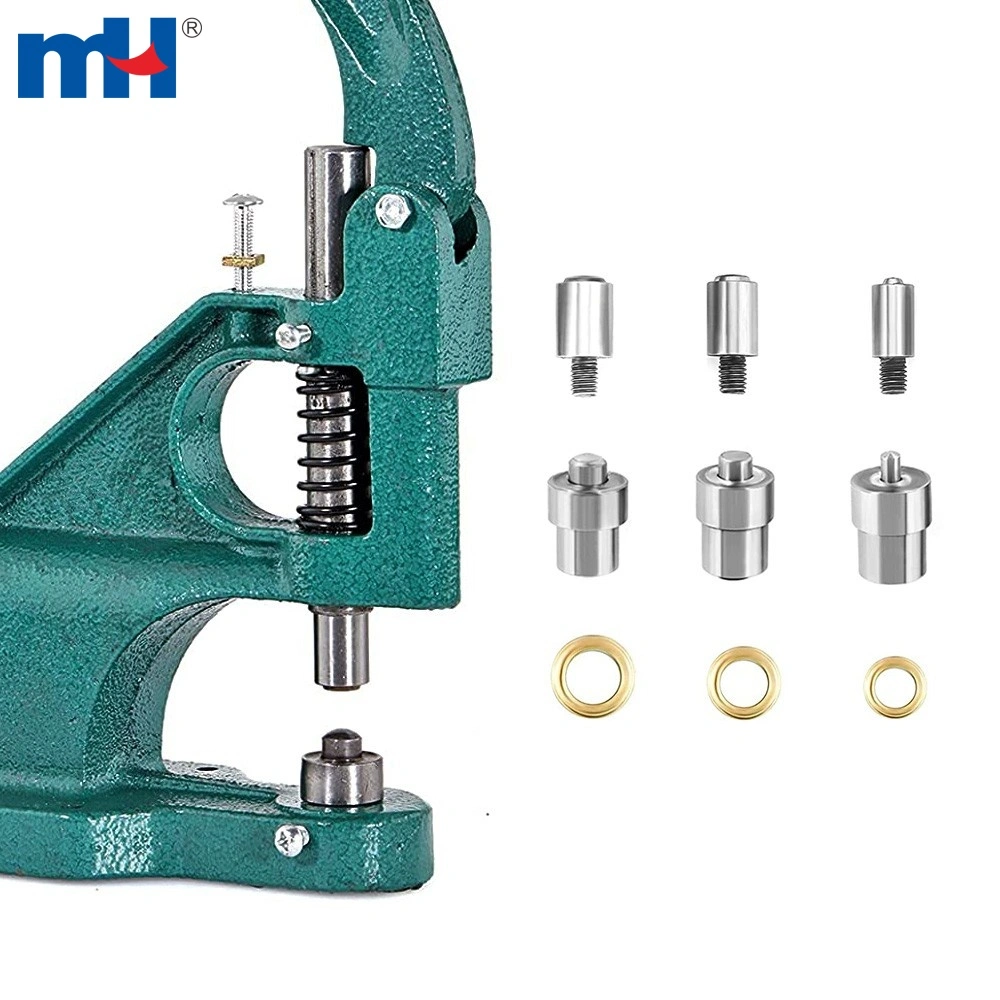

MH grommet press machine is a heavy-duty cast iron hand tool that sets eyelets and other hardware by manual lever pressure.

The machine has a cast iron body in green measuring 8.5 x 19 x 39cm, compact enough to move between workstations while staying stable under load. With the right dies fitted, it punches a hole in the material and seats the eyelet in one press of the handle.

The same frame also sets buttonholes, studs, rivets, snaps, and jeans buttons by swapping the tooling.

The press suits banners, awnings, posters, digital printing, scrapbooking, curtains, belts, bags, shoes.

Key Selling Points

  • Heavy-duty cast iron build: MH grommet press machine is cast from durable iron with strong abrasion resistance, so the frame holds up to repeated pressing without decay or rust.
  • Multi-fastener capability: By changing dies, the machine sets buttonholes, studs, rivets, snaps, jeans buttons, and eyelets from a single press.
  • Compact and portable: The tool's manageable footprint lets workshops move it between stations or store it easily between jobs.
  • Broad material coverage: From banners and awnings to belts, bags, and shoes, the press grommets and fastens diverse materials for signage and garment work.
  • Simple hand operation: Install the dies, punch, place the eyelet, and press the handle — the straightforward sequence keeps setup and use quick.

The grommet machine can be applied to set buttonholes, studs, rivets, snaps, jeans buttons, eyelets, etc.

It can punch the grommets for banners, awnings, posters, digital printing, scrapbooking, curtains, belts, bags, shoes, DIY crafts, etc.

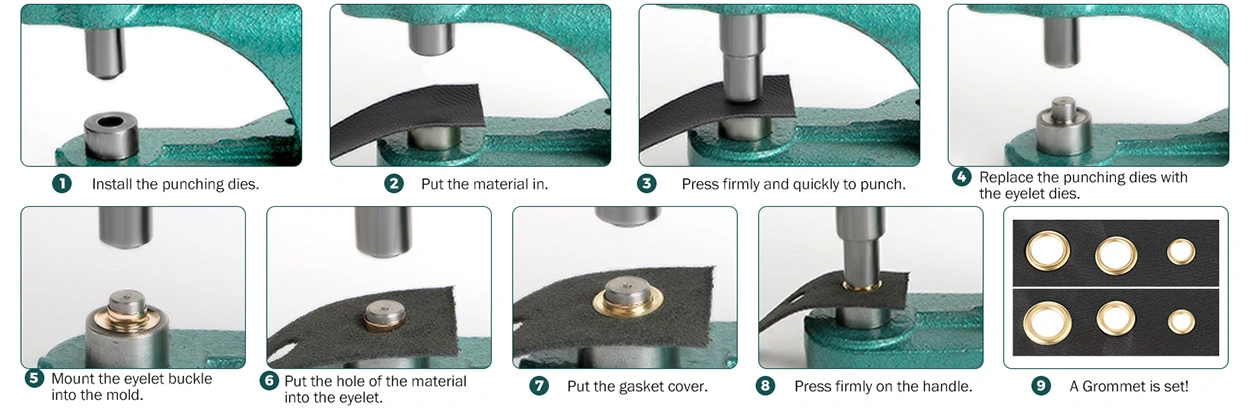

How to use the machine?

1. After fastening the handle, install the lower die and upper die.

2. Punch a hole on the material with a punching die of the corresponding size.

3. Place the eyelet in the lower die, put the hole into and the eyelet spacer on top.

4. Press the handle to complete the installation.

How to operate the grommet machine
